Step 1 - Prepare you iPhone
  • Download the Windows Unlocking Tools Package v1.1, extract it to folder C:\phonedmg under your PC
  • Upgrade and restore your iPhone to Firmware 1.02 in iTune

  • Close iTune, and Launch Windows Task Manager, kill the task "iTuneHelper"
  • Connect your iPhone to PC
  • In File Explorer, double click to run C:\phonedmg\AppTappInstaller.exe
  • After Installer.app finish, your iPhone would be jailbreak-ed


    • Step 2 - Activate your iPhone, add SSH, add necessary files for unlock
  • Make sure your iTune is closed, in File Explorer, double click to run C:\phonedmg\prepare_my_iphone.bat
  • Reboot your iPhone


    • Step 3 - Connect to iPhone through SSH
  • Get your iPhone connected to your Wi-Fi access point by going to Settings ¡÷ Wi-Fi ¡÷ Your network.
  • When it's connected tap the blue arrow on it and drop down the IP Address assigned.
  • Also, go to Settings ¡÷ General ¡÷ Autolock and set it to Never. This will make sure the phone does not go to standby and drop the Wifi connection.
  • Get your PC connected to your Wi-Fi access point (i.e. the same network with iPhone)

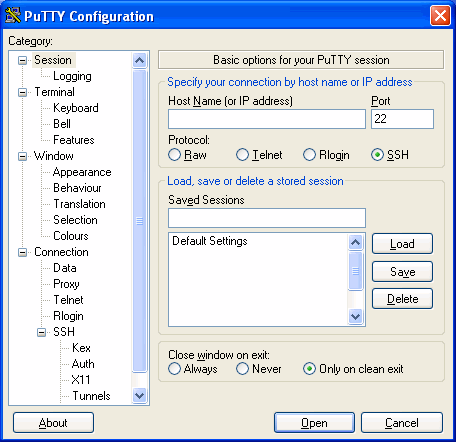

  • In File Explorer, double click to run C:\phonedmg\putty.exe

  • In Putty, Enter the following setting:
          Host Name: [IP Address of iPhone]
          Protocol: SSH
  • Click "Open" button, and you will be connected to iPhone, Enter "root" as username, "dottie" as password


    • Step 4 - Prepare NOR dump image for unlock
    Please don't use the NOR file download from Intenet, otherwise your iPhone IMEI/DeviceID will be changed!!!
  • Type the following commands in putty
          cd /usr/bin
          chmod +x *
          chmod 775 *
          ./NORDumper dump.bin
  • Wait for 20mins until NORDumper finish
  • In File Explorer, double click to run C:\phonedmg\Modify_nor_dump.cmd


    • Step 5 - Unlock
  • Back to Putty, type the following commands:
          cd /usr/bin
          ./iUnlock ICE03.14.08_G.fls nor
          (Wait 10-15mins)
  • Again in Putty, type the following commands:
          ./minicom
  • Wait for 30 sec, the minicom should show "AT S7=45 S0=0 L1 V1 X4 &c1 E1 Q0", type the following command

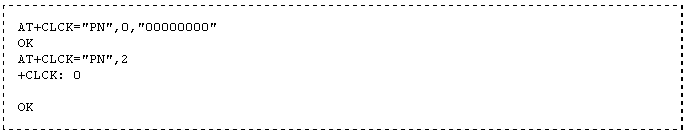

          AT+CLCK="PN",0,"00000000"
          AT+CLCK="PN",2
    After the last one, it should respond with a zero, if it does, phone is unlocked!

    To exit minicom, press CTRL-a followed by q and select "Yes".


    • Step 6 - Cleanup
  • In Putty, type the following commands (otherwise, the bluetooth will fail):
          rm /etc/termcap
  • In File Explorer, double click to run C:\phonedmg\Enable_comm_center.cmd (otherwise, the phone function will disable)
  • Restart your iPhone and Enjoy!!
